Produktdetails

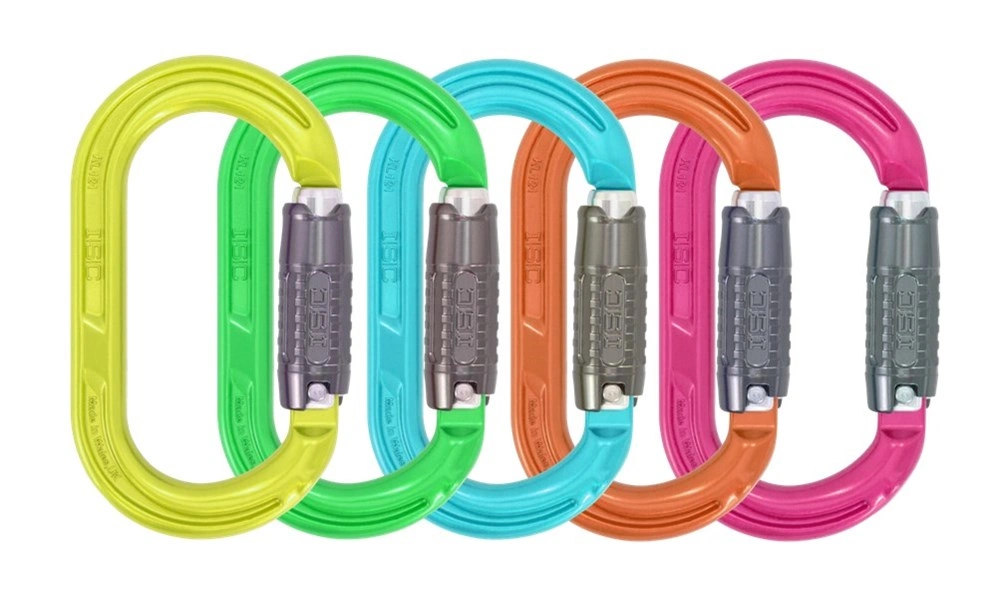

The KL121  Oval is a standard size oval karabiner with an effective working length of 85mm (3.4”).  Many industrial Oval Karabiners have an offset shape, in order to bias (offset) the load towards the spine (the strongest part of the karabiner), to achieve additional major axis strength.  The KL121 however is ideal when load centralisation, correct orientation and optimal loading are the top priorities, to enable balance in a system.


The KL121 is the first ISC karabiner that is available with the option of a screw-in/screw-out captive pin.  The screw-in captive pin can easily be installed/removed as required, using a standard 2mm Alen/Hex Key, making it quick and easy to swap lanyards etc., as and when they need to be replaced.

The KL121 Karabiner can also be supplied with an RFID pocket, on request.  The RFID Pocket, located within the karabiner gate, enables users to retro-fit of an RFID Tag.  RFID tags are not fitted as standard, but can be fitted on request.

Technical Information

(MBS) Minimum Breaking Strength (kN)25
(MBS) Minimum Breaking Strength (lbf)5620
Gate opening gap (mm)22
Gate opening gap (inches)0.86
Nose typeKeylock nose
Captive pinAvailable on request
Serial numberingAs standard
EZYiDAvailable on request
Weight (grams)72
Weight (ounces)2.5

Approved Standards

EN362:2004 B, T
EN12275:2013 B, X, T
